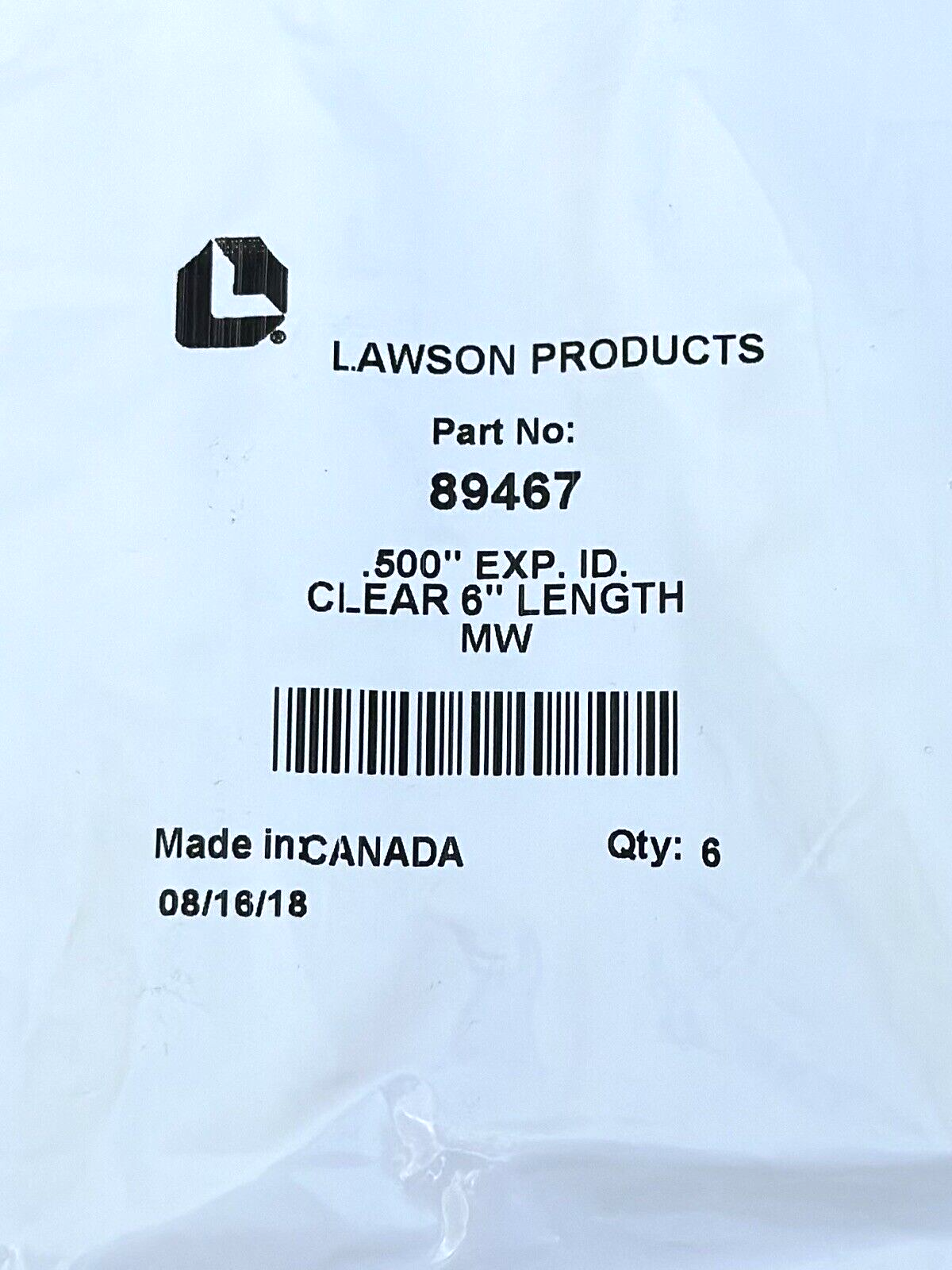

Heat Shrink Tubing 8 to 2 AWG Clear, 6" Length, 2.5:1 Shrink Ratio (Pack

Item#: 89467 Product Name : Heat Shrink Tubing 8 to 2 AWG Clear Wire Gauge Coverage : 8-2 AWG Length : 6 " I.D. Before Shrinkage : . 500 " I.D. After Shrinkage : .195 " Shrink Ratio : 2.5 to 1 Wall Thickness After Shrinkage : .055 " Dielectric Strength : 1000 V/mm Voltage Rating : 600 V Elongation : 500 % Tensile Strength : 2,200 PSI Heat Shock : 4 hours at 482 degrees F Secant Modulus : 27,000 PSI Longitudinal Change : Less than 5% Approvals : Meets MIL-1-23053/4 Specification Style : Clear Dual Wall Heat Shrink Tubing Type : Heat Shrink Tubing Color : Clear UNSPSC # : 39121723 TAA Compliant : Yes - 2.5:1 shrink ratio - Medium wall thickness fills the void between thin wall and heavy wall tubing - Outer wall of tubing is high grade polyolefin with an inner wall of adhesive sealant - Heat-activated sealant provides moisture-tight seal - 6" lengths - Meets MIL-1-23053/4 Specification - Dielectric strength: 1,000V/mil - Low-temperature flexibility: Four hours at –67°F (–55°C) - Maximum continuous operating temperature: 230°F (110°C) - Non-corrosive - Non-nutrient – fungus resistant - Excellent fluid resistance - Rated at 600V - Clear tubing allows visual inspection of wire and terminal• Tensile strength: 2,200 PSI• Elongation: 500%• Volume resistivity: 1015 Ohm/cm• Heat shock: Four hours at 482°F (250°C)• Longitudinal change: Less than 5%• Not flame-retardant• Secant modulus: 27,000 PSI - Perfect for light-duty applications where heavy wall isn’t needed - Use over wire markers for permanent identification Wire gauge coverage is approximate due to the wide variance of wire thicknesses.

Returns Accepted for this item if it's within 14 Days
